Steel Krafts manufactures raceways using premium-grade materials and advanced metal-forming technology. Below are the technical standards for our General Raceway series.

Specification Details / Range
Standard Width (W) 50 mm, 75 mm, 100 mm, 150 mm, 200 mm, 300 mm
Standard Height (H) 25 mm, 50 mm, 75 mm, 100 mm
Sheet Thickness 1.0 mm, 1.2 mm, 1.6 mm, 2.0 mm
Standard Length 2.5 Meters / 3.0 Meters
Material Options Mild Steel (MS), Pre-Galvanized (GI), Stainless Steel (SS), Aluminium
Cover Type Screw-on Cover, Snap-on (Clip-on) Cover, or Hinged Cover
Surface Finish Powder Coated (RAL Colors), Pre-Galvanized, Hot-Dip Galvanized
Category:

Description

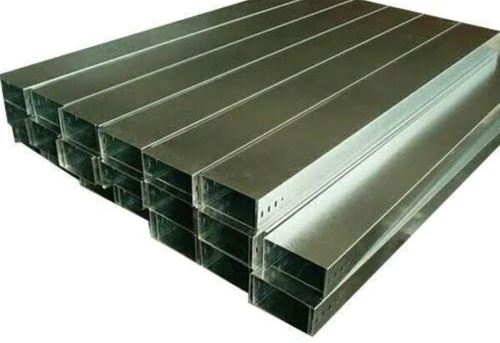

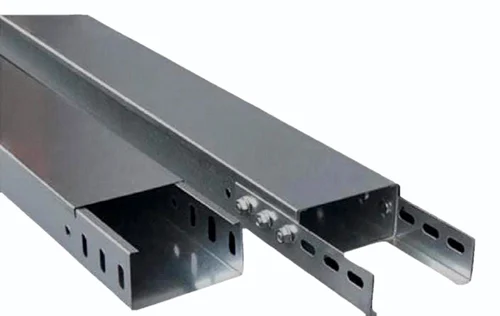

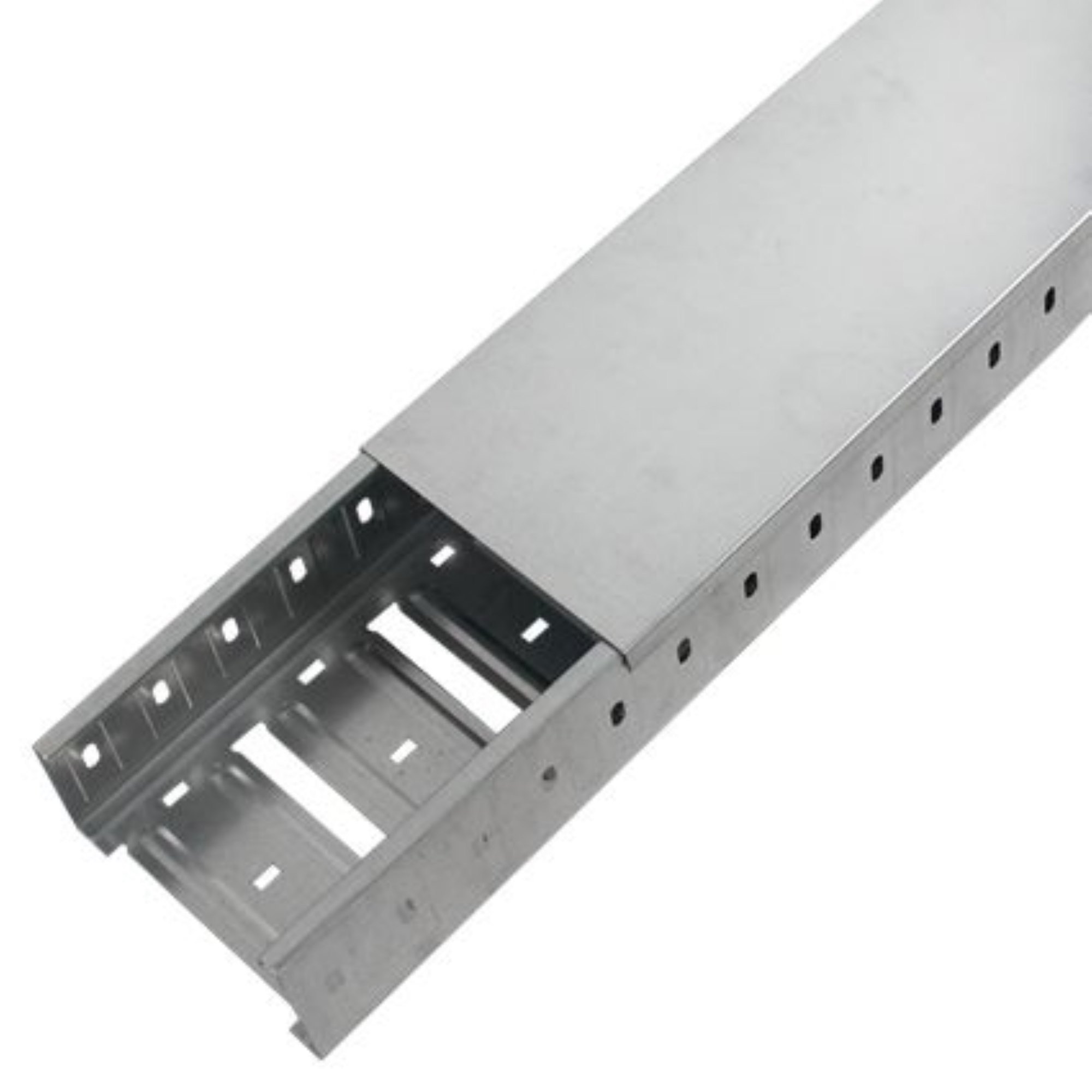

Heavy-Duty General Raceways with Cover by Steel Krafts

Steel Krafts stands as the best cable tray and raceway manufacturer in India, providing high-quality General Raceways with Covers (also known as Wireways or Trunking). Our raceways are engineered to house and protect electrical, data, and telecommunication cables in surface-mount, floor, or wall applications, ensuring a clean and secure installation.

Designed for both industrial and commercial environments, Steel Krafts raceways offer superior physical protection and electromagnetic shielding, keeping your critical wiring organized and safe from external damage.



Steel Krafts is recognized as the best cable tray and raceway manufacturer in India, offering an exhaustive range of cable management solutions designed for industrial, commercial, and infrastructure projects. Our raceways (also known as trunking or wireways) provide a secure, enclosed channel for power, data, and signal cables, ensuring maximum protection and a professional aesthetic.

Below is the detailed technical overview of our core raceway categories: General, Lighting, Floor, and Aluminum Raceways, manufactured to the highest engineering standards.

1. General Raceway with Cover

Our General Purpose Raceways are the standard for industrial power distribution. Designed to protect cables from dust, moisture, and physical impact, these are available in a variety of gauges and finishes.

Technical Specifications: General Raceway

Specification Details / Range
Standard Sizes (W x H) 50x50mm up to 600x150mm
Material Mild Steel (MS), Pre-Galvanized (GI)
Sheet Thickness 1.2 mm, 1.6 mm, 2.0 mm, 2.5 mm
Finish Options Hot-Dip Galvanized, Powder Coated, Painted
Cover Type Screw-Fix or Snap-On Lids

Technical Specifications: General Raceway

Popular Sizing & Capacity Chart

Our raceways are available in various dimensions to accommodate different cable densities.

Raceway Size (W x H) Capacity (approx. cables) Ideal Application
50 x 25 mm 5 – 10 Cables Lighting & Small Office Data
100 x 50 mm 20 – 30 Cables Commercial Power Distribution
150 x 50 mm 40 – 50 Cables Server Rooms & IT Hubs
200 x 100 mm 80 – 100 Cables Industrial Control Panels
300 x 100 mm 150+ Cables Main Header Power Distribution



2. Lighting Raceway (Body for Lighting)

Specially designed for the modern workplace and industrial floors, our Lighting Raceways provide an integrated body for both cable housing and fixture mounting. They are engineered for rapid installation and a sleek, low-profile look.

Technical Specifications: Lighting Raceway

Specification Details / Range
Common Sizes 38x38mm, 50x25mm, 50x50mm
Fixture Compatibility LED Battens, Industrial Tube Lights, High-Bays
Mounting Surface Mount or Threaded Rod Suspension
Finishing High-Aesthetic Powder Coating (White/Grey/Custom)

3. Floor Raceway (Underfloor Trunking)

Steel Krafts Floor Raceways are designed for high-traffic environments where cables must be routed beneath the flooring. These are built with reinforced covers to withstand heavy pedestrian or equipment loads.

Technical Specifications: Floor Raceway

Specification Details / Range
Design Type Flush Floor or Under-Screed
Load Bearing Heavy-Duty Reinforced Steel
Partitions Optional Internal Dividers for Power/Data Separation
Corrosion Protection Pre-Galvanized or Hot-Dip Galvanized for moisture resistance

4. Aluminum Raceway

For environments where weight, ease of installation, and natural corrosion resistance are priorities, our Aluminum Raceways offer a premium, lightweight alternative to steel.

Technical Specifications: Aluminum Raceway

Specification Details / Range
Material Grade High-Grade Aluminum Alloy
Finish Anodized or Powder Coated
Benefits Non-Magnetic, Lightweight, Superior Aesthetics
Application Laboratories, Coastal Regions, High-End Office Spaces

Technical Comparison Table

Feature General Raceway Lighting Raceway Floor Raceway Aluminum Raceway
Primary Use Power Distribution Light Fixtures Underfloor Wiring High-End / Coastal
Strength Very High Medium Extreme Medium
Weight Heavy Light Heavy Very Light
EMI Shielding Excellent Good Excellent Good
Installation Bracket/Wall Suspension Floor Embedded Modular/Surface



Key Features & Benefits

  • Robust Cable Protection: The solid enclosed body protects cables from dust, moisture, and accidental physical impact.
  • Aesthetic Appeal: Available in a wide range of powder-coated finishes to match your interior architecture and provide a professional look.
  • Easy Access for Maintenance: The removable cover system allows technicians to add or replace cables without the need to pull them through long conduits.
  • EMI/RFI Shielding: The metal construction acts as a barrier against electromagnetic interference, crucial for data and signal integrity.
  • Smooth Finish: Precision-manufactured to be burr-free, preventing cable insulation damage during installation.

Comprehensive Accessory Range

To provide a complete “turnkey” solution, Steel Krafts offers a full suite of raceway accessories:

  • Raceway Jointers: For seamless end-to-end connections.
  • Junction Boxes (3W & 4W): For efficient cable branching.
  • Box Connectors: For secure transitions to electrical panels.
  • End Caps & Elbows: For professional termination and directional changes.

Why Choose Steel Krafts?

As a leader in the Indian market, Steel Krafts ensures every raceway length is manufactured with CNC precision. Our products are rigorously tested for finish quality and load-bearing capacity, making us the preferred partner for architects, consultants, and electrical contractors across India.

Looking for a custom solution? Steel Krafts provides bespoke raceway sizes and custom partition channels to separate power and data cables within the same body.

Steel Krafts — Delivering excellence in cable management solutions across India.
