Description
Steel Krafts is the premier choice for electrical trunking solutions, recognized as the best cable tray and raceway manufacturer in India. Our Raceway Elbows and Junction Boxes are engineered to provide a seamless, enclosed, and secure path for directional changes in industrial and commercial lighting and power distribution systems.
These fittings are designed to integrate perfectly with our General and Lighting Raceway bodies, ensuring 100% cable protection, EMI shielding, and a professional aesthetic finish.

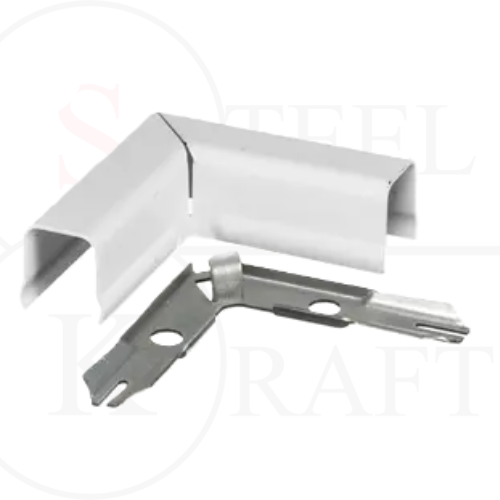

1. Horizontal Raceway Elbows (2W, 3W, 4W)
Horizontal elbows and junction boxes allow for directional changes and branching on a flat plane (wall or floor). Steel Krafts utilizes a modular “Box Type” or “Elbow Type” design to ensure maximum internal volume for cable bending.
Technical Specifications: Horizontal Junctions
| Fitting Type | Description | Common Sizes (W x H) |
|---|---|---|
| 2W H/Elbow (L-Type) | Standard 90° turn for corners. | 50×50, 100×50, 150×50 mm |
| 3W H/Elbow (T-Type) | 3-Way junction for branching runs. | 75×75, 100×100, 200×50 mm |
| 4W H/Elbow (Cross) | 4-Way intersection for complex grids. | 100×50, 150×100, 300×100 mm |
2. Vertical Raceway Elbows (Inside & Outside)
Vertical elbows are utilized when the raceway run must change elevation—moving from a wall to a ceiling, or bypassing structural beams.
- Vertical Inside (V/I): Used for upward 90° transitions.
- Vertical Outside (V/O): Used for downward 90° transitions.
Technical Specifications: Vertical Elbows
| Side Height (H) | Bend Angle | Degree Options | Finish |
|---|---|---|---|
| 25 mm | 90° | 90°, 45° | Powder Coated / GI |
| 50 mm | 90° | 90°, 45° | Powder Coated / GI |
| 75 mm | 90° | 90°, 45° | Powder Coated / GI |
| 100 mm | 90° | 90°, 45° | Powder Coated / GI |
Key Features & Benefits
- Enclosed Protection: Unlike open trays, our raceway elbows provide a total enclosure, protecting cables from dust, moisture, and physical tampering.
- Snap-On / Screw-Fix Covers: All elbows come with matching covers (lids) that allow for easy access during maintenance or cable upgrades.
- EMI/RFI Shielding: The solid metal construction acts as a continuous shield, which is essential for protecting sensitive data cables from power circuit interference.
- Aesthetic Continuity: Every elbow is finished to match the main raceway run, whether in Pre-Galvanized steel or high-quality Powder Coating (RAL 7035, Pure White, etc.).
- Burr-Free Interiors: Precision CNC manufacturing ensures all internal surfaces are smooth, eliminating the risk of cable skinning during installation.
Why Choose Steel Krafts Raceway Fittings?
At Steel Krafts, we bridge the gap between industrial durability and commercial aesthetics. Our 2-Way, 3-Way, and 4-Way junctions are designed with pre-punched holes for immediate connection to raceway bodies using our specialized Raceway Jointers.
- Uniform Dimensions: Guaranteed fitment with all standard Steel Krafts raceway profiles.
- Custom Fabrication: We can manufacture specialized offset elbows and non-standard angles (15°, 22.5°) for unique architectural requirements.
- Ready Stock: As a leading manufacturer in India, we maintain a vast inventory of standard sizes for immediate project dispatch.
Installation Tip: Always use Steel Krafts Box Connectors and Earth Links at elbow junctions to ensure mechanical strength and electrical earth continuity across the system.
Steel Krafts — Delivering excellence in cable management solutions across India.
