Cable Tray Fittings: Horizontal Tee, Cross, and Wye (Ladder Type)

Our heavy-duty ladder-type cable tray fittings are engineered for robust cable management, providing seamless directional changes and junctions for high-volume power and data cabling. Constructed from high-quality STEEL, these fittings ensure structural integrity and long-term durability in demanding industrial environments.

Available Configurations

We offer three primary “Round Type” fitting configurations to suit your complex routing requirements:

• Horizontal Tee (H/TEE): Ideal for creating a 90-degree branch from a main cable run.

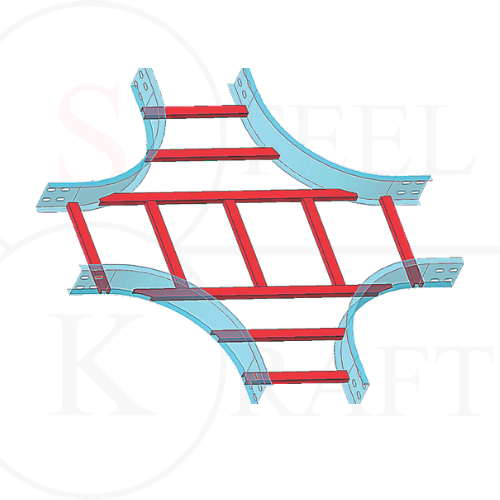

• Horizontal Cross (H/CROSS): Designed for four-way intersections where two cable runs cross paths.

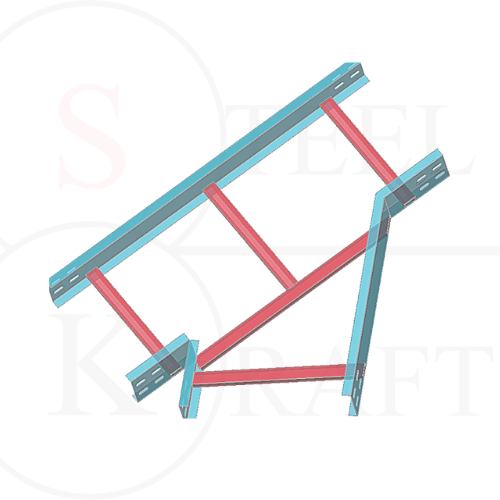

• Horizontal Wye (H/WYE): Facilitates 45-degree branching for smoother cable transitions and reduced strain.

Key Specifications

All dimensions are provided in MM to ensure precision during installation.

• Standard Radius: Each fitting features a 300 mm radius (R300) to maintain the minimum bend radius of cables, preventing signal loss or insulation damage.
• Flexible Heights: Available in four standard side rail heights to match your existing tray system: 50, 75, 100, and 150 mm.
• Fitting Extensions: Standard 100 mm straight sections at each end allow for easy connection using standard splice plates.
