Perforated Tray Fittings: Horizontal Tee, Cross, and Wye (Angle Type)
Our STEEL perforated cable tray fittings are designed for precision cable routing and superior thermal management. These “Angle Type” fittings feature a specialized perforated pattern to facilitate maximum airflow and easy cable securing for high-density installations.
Available Configurations
We offer three standard horizontal configurations to manage complex intersections and branching in your cable tray network:

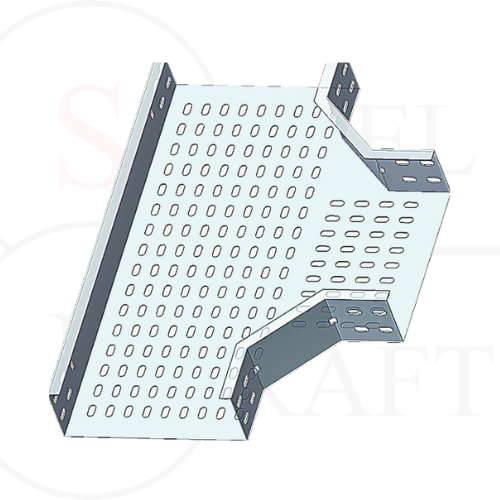

- Horizontal Tee: Enables a 90-degree perpendicular branch from a continuous tray run.

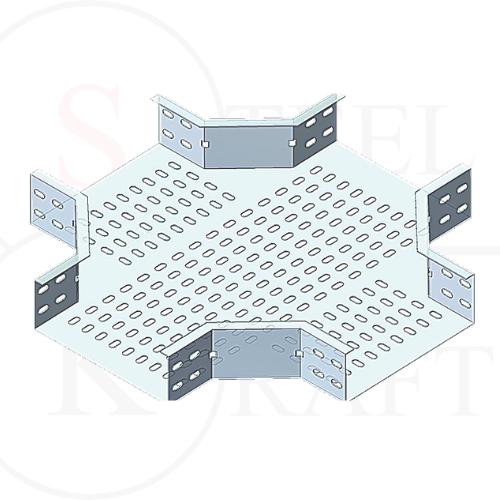

- Horizontal Cross: Designed for four-way junctions where two cable paths intersect at a 90-degree angle.

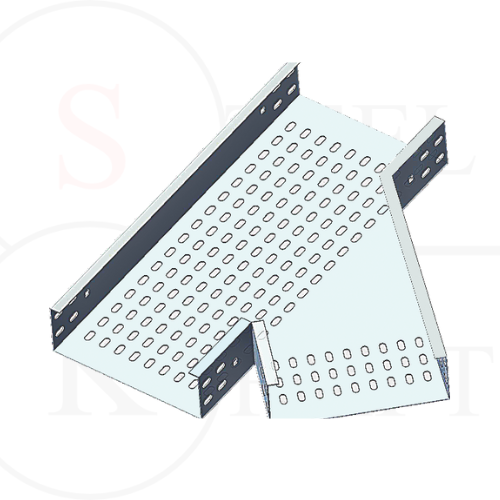

- Horizontal Wye: Provides a 45-degree branch for smooth cable transitions and reduced bending stress.
Key Specifications
Engineered for industrial reliability, these fittings utilize standard metric dimensions to ensure compatibility with existing infrastructure.
- Material & Brand: High-durability STEEL manufactured by KRAFTS.
- Side Rail Heights: Available in four standard heights: 50, 75, 100, and 150 mm.
- Connector Extensions: Each fitting includes integrated 100 mm straight sections at every connection point for secure splicing.
- Ventilation: Precision perforated base to support cable cooling and prevent moisture accumulation.
