Description
As the best cable tray manufacturer in India, Steel Krafts provides heavy-duty Solid Bottom Type Horizontal Junctions, including Tees, Crosses, and Wye (Y) fittings. Designed for high-security cable routing, these solid-bottom fittings act as a continuous protective conduit, ensuring 100% physical shielding and superior EMI/RFI protection at every intersection of your cable management system.
Our horizontal junctions are engineered with a standard 300mm Radius, allowing for a smooth transition of cables through intersections while maintaining the required minimum bending radius for power and data integrity.
Types of Horizontal Junctions

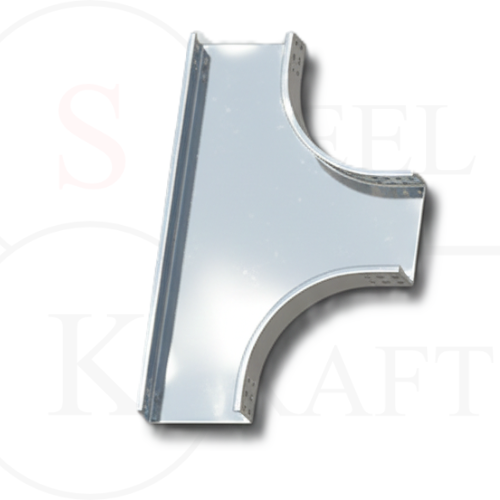

- Horizontal Tee (3-Way): Facilitates a 90-degree branch-off from the main cable run.

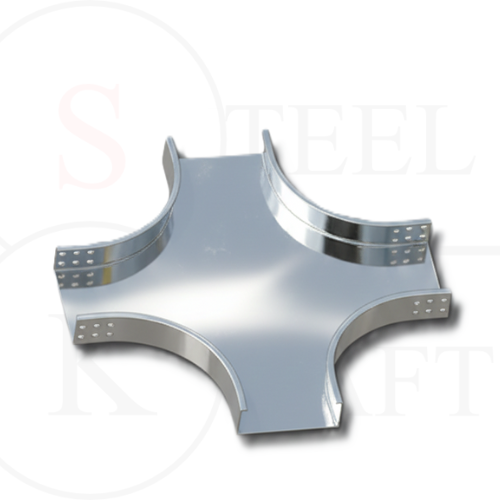

- Horizontal Cross (4-Way): Provides a central intersection for four cable tray paths meeting at a single point.

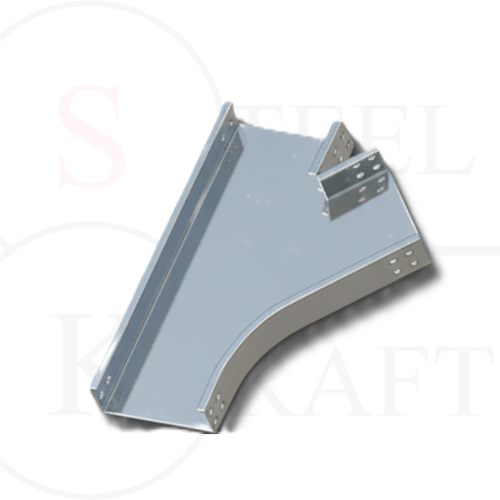

- Horizontal Wye (Y-Fittings): Allows for a 45-degree or 30-degree branch-off, ideal for specialized routing requirements.
Technical Specifications: Solid Bottom Junctions
Every junction is precision-fabricated to ensure a flush fit with our solid straight trays, ensuring electrical continuity and structural strength.
| Specification | Details / Range |
|---|---|
| Fittings Available | Horizontal Tee, Horizontal Cross, Horizontal Wye |
| Standard Radius | 300 mm |
| Tray Width (W) | 150 mm to 1200 mm |
| Side Rail Height (H) | 50 mm, 75 mm, 100 mm, 150 mm |
| Material Options | Mild Steel (MS), Stainless Steel (SS), Aluminium |
| Finish Options | Hot-Dip Galvanized (IS-2629), Pre-Galvanized, Powder Coated |
Key Features & Benefits
- Uninterrupted Shielding: The solid bottom design ensures no exposure to dust, moisture, or falling objects at critical junction points.
- EMI/RFI Barrier: Ideal for sensitive telecommunication and data center intersections where signal interference must be minimized.
- Rounded Smooth Curves: Our CNC-fabricated round profile eliminates sharp internal corners, ensuring zero friction during cable installation.
- High Load Capacity: Engineered with reinforced joints to maintain structural integrity even when supporting heavy cable bundles at 4-way intersections.
- Corrosion Resistance: Our standard Hot-Dip Galvanizing process ensures these junctions withstand harsh industrial environments for decades.
Why Engineers Choose Steel Krafts Junctions?
At Steel Krafts, we utilize advanced fabrication techniques to ensure that every Tee, Cross, and Wye fitting is perfectly aligned. This precision reduces installation time and labor costs, as our fittings bolt seamlessly to our solid straight sections using standard coupler plates.
Custom Solutions
- Unequal Tees: We manufacture custom “Unequal Tees” where the branch width is different from the main run width.
- Security Covers: Matching solid flanged covers are available for all junctions to provide a 100% dust-proof enclosed environment.
Steel Krafts Quality Guarantee: Every junction is rigorously tested for dimensional accuracy and welding strength before leaving our facility.
Steel Krafts — Delivering excellence in cable management solutions across India.
