Description
As the best cable tray manufacturer in India, Steel Krafts offers a specialized range of Solid Bottom Type Cable Tray Reducers. These fittings are critical for systems requiring maximum cable protection and electromagnetic shielding while transitioning between different tray widths. Unlike ladder or perforated reducers, the solid bottom design ensures an unbroken protective barrier for sensitive data and power cables.
Our reducers are engineered to provide a seamless, flush connection between tray sections of varying dimensions, eliminating sharp edges and ensuring structural continuity across your cable management network.
Types of Solid Bottom Reducers
Steel Krafts manufactures three specific configurations to handle any site layout:

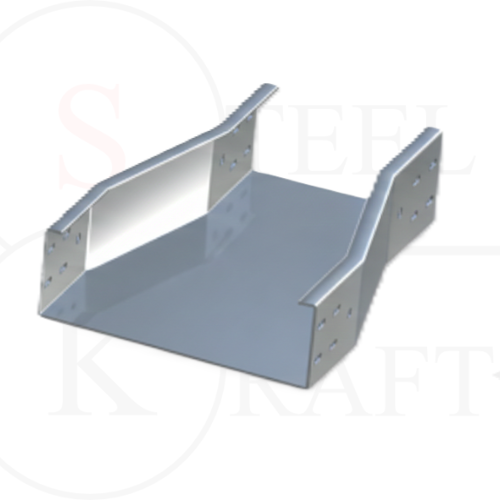

- Center Reducer: Symmetrically reduces the tray width from both sides.

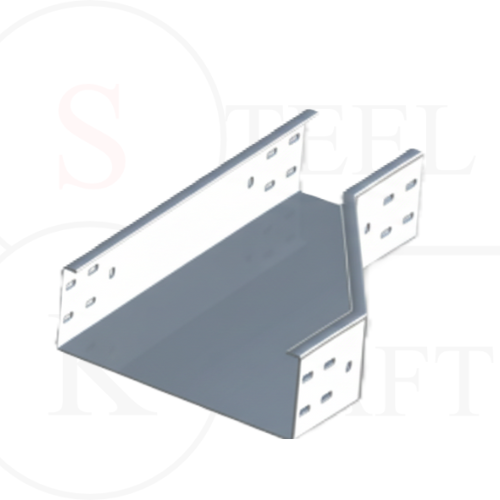

- Left Hand Reducer: Reduces the width from the left side, maintaining a straight alignment on the right.

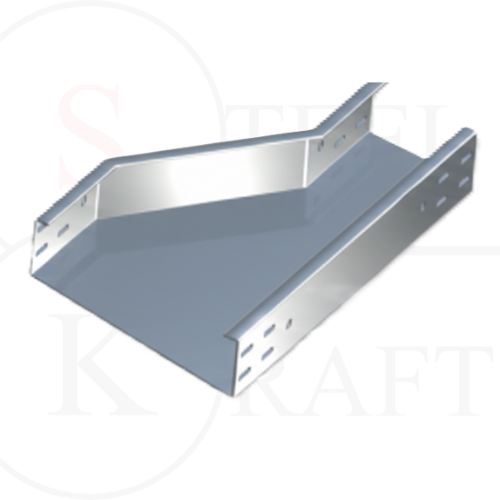

- Right Hand Reducer: Reduces the width from the right side, maintaining a straight alignment on the left.
Technical Specifications: Solid Bottom Reducers
Every reducer is precision-fabricated to match the high load-bearing standards of our solid straight trays.
| Specification | Details / Range |
|---|---|
| Major Width (W1) | 150 mm to 1200 mm |
| Minor Width (W2) | 100 mm to 1000 mm |
| Side Rail Height (H) | 50 mm, 75 mm, 100 mm, 125 mm, 150 mm |
| Sheet Thickness | 1.6 mm, 2.0 mm, 2.5 mm, 3.0 mm |
| Standard Length (L) | 300 mm to 600 mm (depending on width delta) |
| Material Options | Mild Steel (MS), Stainless Steel (SS), Aluminium |
| Finish Options | Hot-Dip Galvanized, Powder Coated, Pre-Galvanized |
Key Features & Benefits
- Continuous Shielding: The non-perforated solid base ensures that EMI/RFI shielding remains constant even at transition points.
- Debris & Moisture Barrier: Protects cables from falling objects, dust, and liquid drippings during width transitions.
- Precision Fabrication: CNC-sheared and folded to ensure that the “A” and “B” dimensions align perfectly with straight tray sections.
- Safety Engineering: All edges are rounded and deburred to prevent “cable skinning” or insulation damage during pulling.
- High-Durability Finish: Our Hot-Dip Galvanizing (IS-2629) provides decades of rust protection in harsh chemical or outdoor environments.
Why Choose Steel Krafts Solid Reducers?
At Steel Krafts, we understand that a transition point is often the most vulnerable part of a cable run. Our Solid Bottom Reducers are built with reinforced side flanges to ensure that the load-bearing capacity is never compromised. We provide the reliability required for Nuclear Facilities, Refineries, and High-Tier Data Centers.
Accessories & Support
- Matching Solid Covers: We provide flanged solid covers for all reducer types to create a 100% dust-proof enclosed transition.
- Coupler Plates: Every reducer is designed to be secured using our heavy-duty standard coupler plates and expansion bolts for electrical continuity.
Design Tip: To ensure a perfect fit, please specify the Reduction Type (Center, Left, or Right) and the Side Rail Height when requesting a quote.
Steel Krafts — Delivering excellence in cable management solutions across India.
