Reducers

Description

Ladder Type Cable Tray Reducers (Left-Hand & Right-Hand)

Our STEEL ladder-type reducers are precision-engineered to join cable trays of different widths while maintaining a continuous and secure pathway. These fittings are essential for optimizing space and material costs as cable density decreases along a run.

Configuration Options

To accommodate specific routing constraints and wall alignments, we offer two distinct configurations:

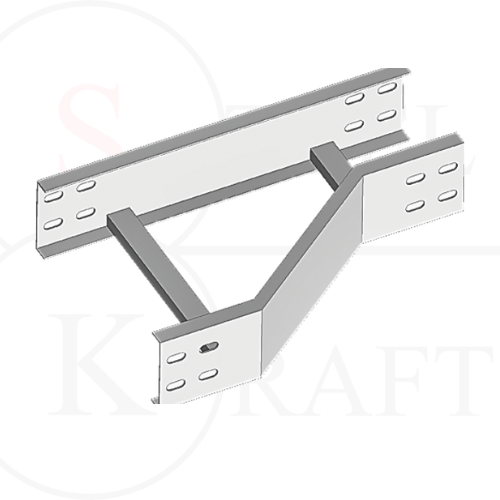

• Left-Hand Reducer (LH): Reduces the tray width with the reduction occurring entirely on the left side (when viewed from the larger width), keeping the right rail straight.

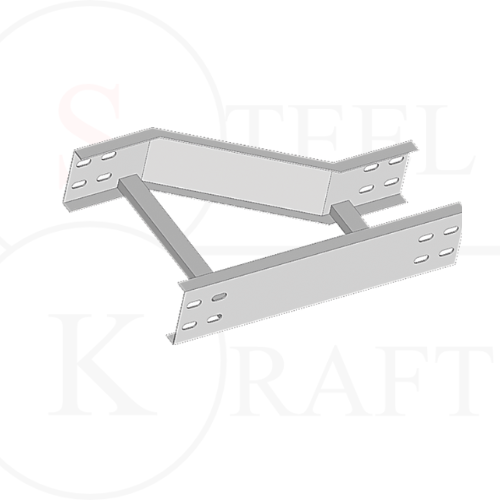

• Right-Hand Reducer (RH): Reduces the tray width with the reduction occurring entirely on the right side, keeping the left rail straight.

Key Specifications

Consistent with our “Round Type” fitting series, these reducers adhere to the following industrial standards:

Material: High-grade STEEL for maximum load-bearing capacity and environmental resistance.

Integrated Extensions: Features 100 mm straight sections at both the primary and reduced ends to ensure effortless connection with standard splice plates.

Height Compatibility: Available in standard side rail heights of 50, 75, 100, and 150 mm to match your existing ladder system.

Tapered Design: Engineered with a smooth transition to protect cable jackets from sharp angles or snagging during pull-through.
