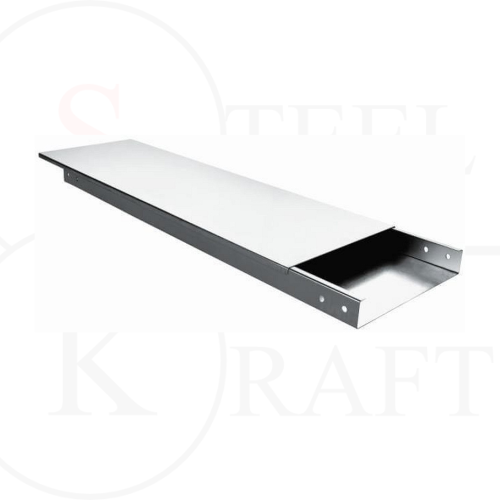

Solid Type Straight Cable Tray: Maximum Protection by Steel Krafts
As the best cable tray manufacturer in India, Steel Krafts engineers high-performance Solid Type Straight Cable Trays for environments that demand the ultimate level of cable security and shielding. Unlike ladder or perforated systems, the solid bottom design provides a continuous, non-ventilated support base that acts as a robust protective conduit for sensitive wiring.
Our solid straight trays are ideal for projects requiring electromagnetic interference (EMI/RFI) shielding or protection from falling debris, dust, and moisture in industrial facilities.
Technical Specifications: Solid Type Straight Tray
Manufactured using precision metal-forming technology, Steel Krafts solid trays meet rigorous industrial standards for load-bearing and environmental resistance.
| Specification | Details / Range |
|---|---|
| Tray Width (W) | 50 mm to 1200 mm |
| Side Rail Height (H) | 50 mm, 75 mm, 100 mm, 125 mm, 150 mm |
| Standard Length (L) | 2.5 Meters / 3.0 Meters |
| Sheet Thickness | 1.2 mm, 1.6 mm, 2.0 mm, 2.5 mm, 3.0 mm |
| Material Options | Mild Steel (MS), Stainless Steel (SS), Aluminium |
| Finish Options | Hot-Dip Galvanized, Pre-Galvanized, Powder Coated |
| Cover Compatibility | Compatible with Solid Flanged Covers for 100% enclosure |
Technical Sizing & Load Support Chart
Below is the standard sizing table for our solid bottom straight sections.
| Width (W) | Side Height (H) | Suggested Thickness | Primary Application |
|---|---|---|---|
| 150 mm | 50 mm | 1.6 mm | Data & Fiber Optic Shielding |
| 300 mm | 75 mm | 2.0 mm | Commercial Power Distribution |
| 450 mm | 100 mm | 2.0 mm | Industrial Control Cabling |
| 600 mm | 100 mm | 2.5 mm | Heavy-Duty Power Plants |
| 900 mm | 150 mm | 3.0 mm | High-Voltage Infrastructure |
Key Features & Benefits
- Total Cable Shielding: The solid bottom acts as a barrier against EMI/RFI, making it the preferred choice for data centers and telecommunication hubs.
- Debris Protection: Prevents small objects, dust, or corrosive drippings from coming into contact with the cables.
- Structural Rigidity: The non-perforated design offers a higher surface area for support, preventing the sagging of smaller-diameter or sensitive cables.
- Safety Edges: Every straight section is manufactured with rounded, deburred edges to ensure cable insulation is never compromised during pulling.
- Corrosion Resistance: Our Hot-Dip Galvanizing process (as per IS-2629) ensures a long service life even in chemical-intensive or outdoor environments.
Why Steel Krafts?
At Steel Krafts, we utilize CNC-guided machinery to ensure that every “Straight” section is perfectly linear. This precision manufacturing allows for seamless coupling with our range of elbows, tees, and reducers. Our solid trays provide the peace of mind that your critical infrastructure is protected by the highest quality metal fabrication in India.
Common Use Cases
- Nuclear & Chemical Plants: For protection against hazardous particulates.
- Food & Beverage Processing: Ensuring a hygienic, easy-to-clean cable run.
- High-Security Zones: Preventing unauthorized access to critical communication lines.
Design Tip: For maximum protection, pair our Solid Type Straight Trays with Steel Krafts Solid Covers and Gasket Seals to create a fully enclosed, weather-resistant system.
Steel Krafts — Delivering excellence in cable management solutions across India.
