Description
As the best cable tray manufacturer in India, Steel Krafts delivers high-precision Solid Bottom Type Vertical Elbows (Round Type). These essential fittings are designed to transition cable runs between different elevations—such as moving from overhead ceilings to floor-mounted panels—while providing 100% physical protection and electromagnetic shielding for your critical wiring.
Our solid vertical elbows are engineered with a standard 300mm Radius, ensuring that cables maintain their minimum bending radius, which is vital for preventing data loss in communication lines and stress in high-voltage power cables.

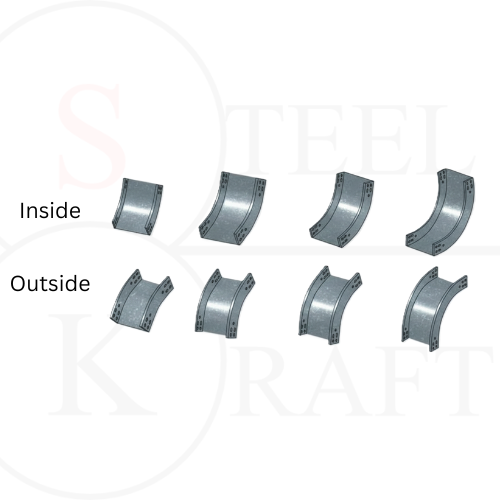

Types of Vertical Elbows
We manufacture two primary configurations to handle all directional needs:
- Vertical Inside (IN): Facilitates upward directional changes.
- Vertical Outside (OUT): Facilitates downward directional changes.
Technical Specifications: Solid Bottom Vertical Elbow
Every vertical elbow is fabricated using heavy-duty metal-forming techniques, ensuring a seamless fit with our solid straight trays.
| Specification | Details / Range |
|---|---|
| Available Angles | 90°, 60°, 45°, 30° |
| Standard Radius | 300 mm |
| Side Rail Height (H) | 50 mm, 75 mm, 100 mm, 125 mm, 150 mm |
| Tray Width (W) | 150 mm to 1200 mm |
| Material Options | Mild Steel (MS), Stainless Steel (SS), Aluminium |
| Finish Options | Hot-Dip Galvanized, Pre-Galvanized, Powder Coated |
Vertical Elbow Dimensional Data (Radius: 300mm)
The following table details the “A” dimension coordinates based on the side rail height, as per Steel Krafts engineering standards for both Inside and Outside configurations.
| Side Rail Height (H) | 90° (A) | 60° (A) | 45° (A) | 30° (A) |
|---|---|---|---|---|
| 50 mm | 450 mm | 452 mm | 417 mm | 362 mm |
| 75 mm | 475 mm | 474 mm | 435 mm | 375 mm |
| 100 mm | 500 mm | 496 mm | 454 mm | 387 mm |
| 125 mm | 525 mm | 518 mm | 472 mm | 400 mm |
| 150 mm | 550 mm | 540 mm | 489 mm | 412 mm |
Key Features & Benefits
- Continuous Protection: The solid bottom design ensures no gaps or holes, shielding cables from falling objects, liquids, and dust during elevation changes.
- EMI/RFI Shielding: The enclosed metal structure provides an effective barrier against interference, making it the preferred choice for data centers and server rooms.
- Smooth Round Profile: Our “Round Type” engineering eliminates sharp corners, ensuring a frictionless path for cable pulling.
- Structural Integrity: Manufactured from high-gauge steel to maintain load-bearing capacity even at steep vertical angles.
- Unified System: Perfectly aligns with Steel Krafts Solid Straight Trays using standard coupler plates for a secure, grounded connection.
Why Choose Steel Krafts for Vertical Routing?
At Steel Krafts, we understand the complexities of vertical cable management. Our Vertical Elbows are manufactured using CNC machinery to ensure that the degree of the bend is exact. Whether you are working on a Solar Power Plant, Refinery, or Commercial High-Rise, our fittings provide the reliability and professional finish your project demands.
Technical Support
- Matching Covers: We offer solid flanged covers for both Inside and Outside elbows to create a 100% dust-proof enclosed system.
- Custom Radii: We can manufacture vertical bends with custom radii (e.g., 450mm or 600mm) for specialized heavy-industrial cables.
Steel Krafts Quality Promise: All vertical fittings are tested for dimensional accuracy and galvanization thickness (IS-2629) before dispatch.
Steel Krafts — Delivering excellence in cable management solutions across India.
