Vertical Elbow (Perforated Type)

Description

Perforated Tray Fittings: Vertical Elbow

Our STEEL perforated vertical elbows by KRAFTS are essential for transitioning cable runs between different elevations. These fittings come in two primary configurations—Internal (Inside) Risers and External (Outside) Risers—to navigate architectural obstacles or change floor levels while maintaining the structural integrity of the cable path.

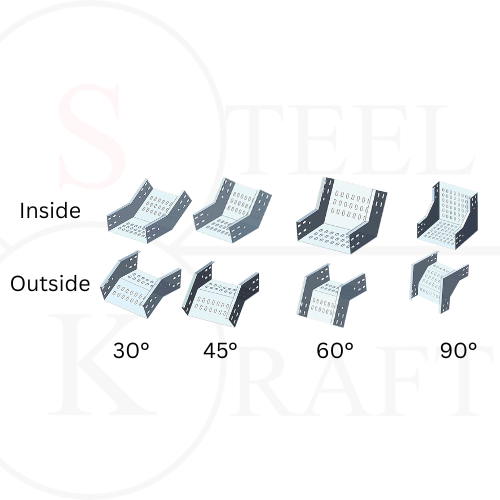

Configuration Options

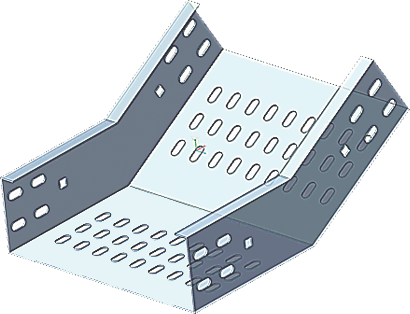

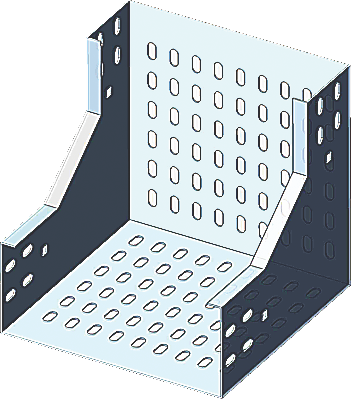

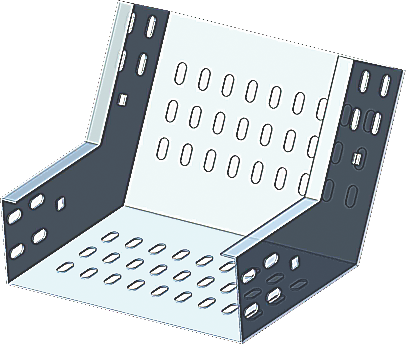

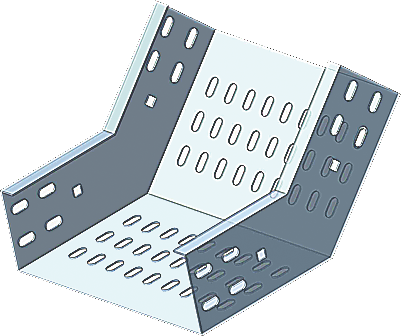

• Vertical Internal Elbow (Inside Riser): Used when the tray run transitions from a horizontal plane to an upward vertical direction.

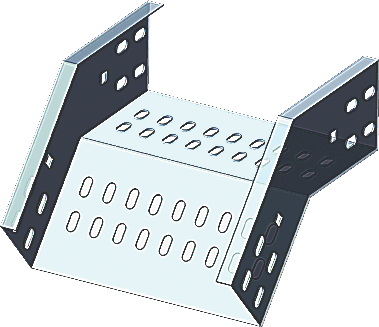

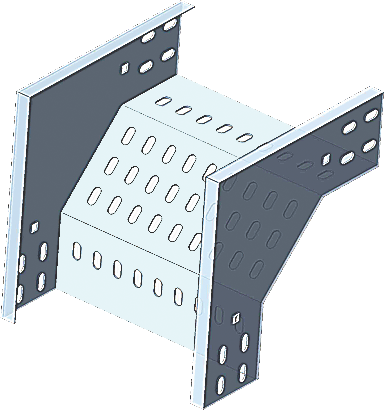

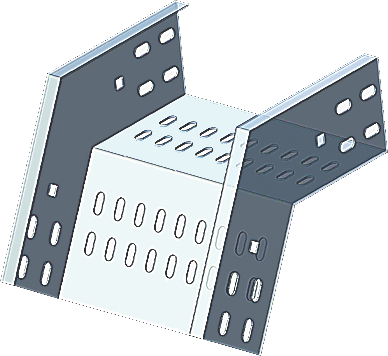

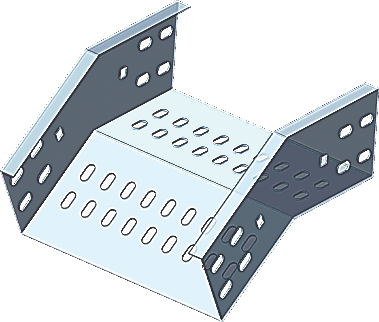

• Vertical External Elbow (Outside Riser): Used when the tray run transitions from a horizontal plane to a downward vertical direction.

Key Specifications

Designed to the same rigorous standards as our straight perforated trays, these vertical fittings ensure a perfect fit and consistent airflow.

• Side Rail Heights: Available in standard heights of 50, 75, 100, and 150 mm.
• Integrated Extensions: Each vertical elbow features 100 mm straight sections at both ends to facilitate easy connection to straight tray sections using standard splice plates.
• Ventilation: The base is fully perforated to allow for maximum heat dissipation and cable drainage.
• Unit of Measure: All technical dimensions are provided in MM.
